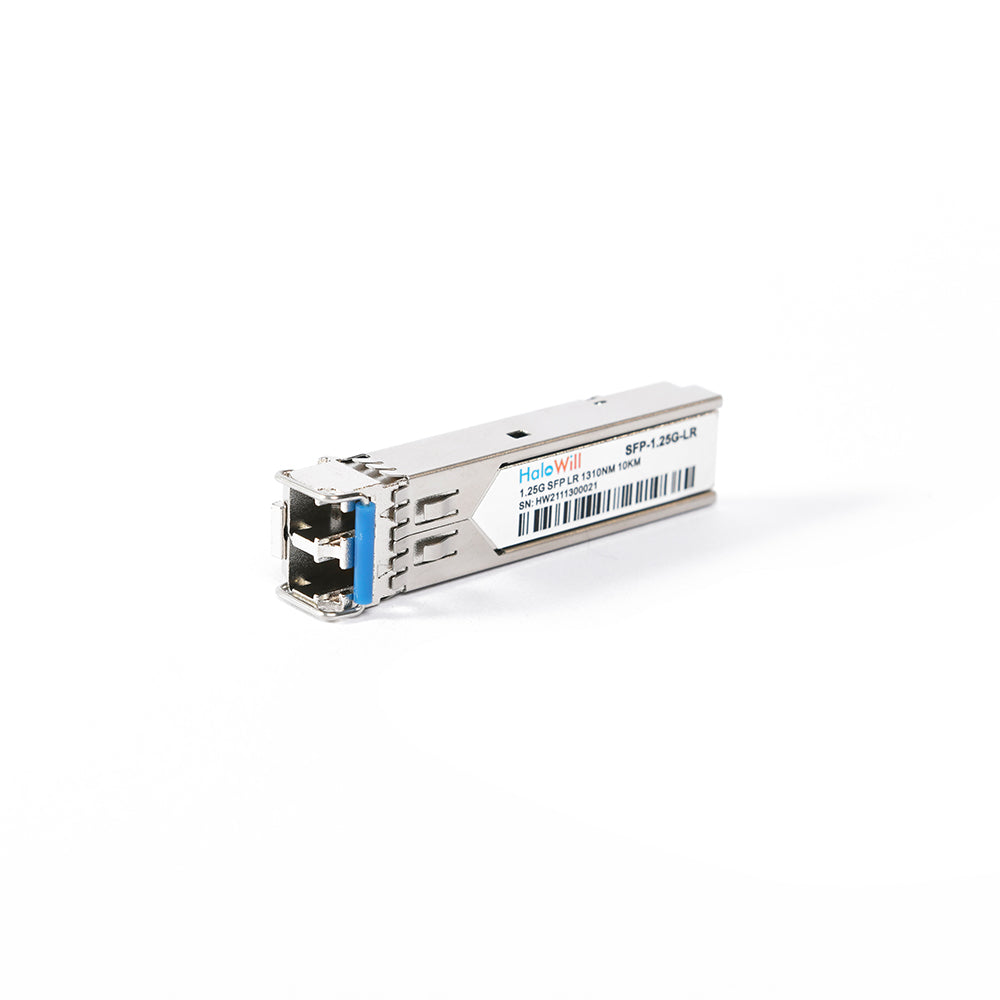

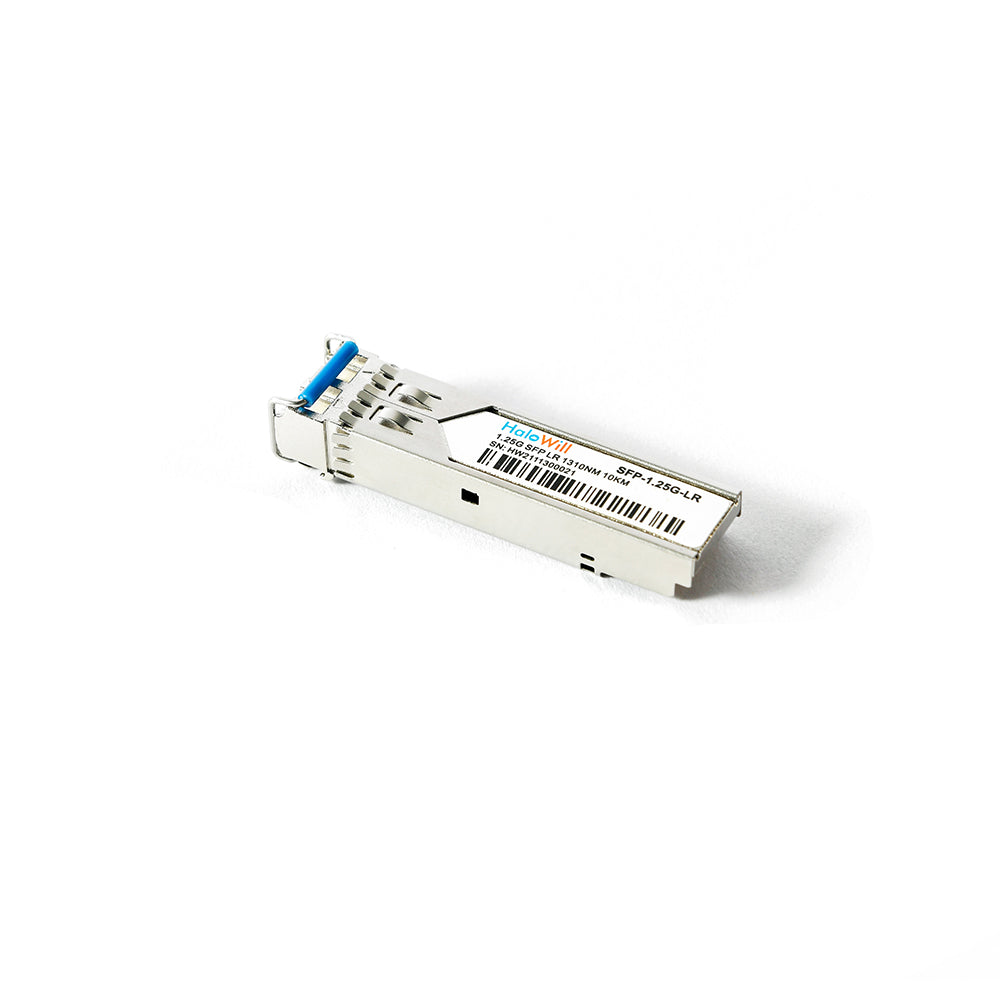

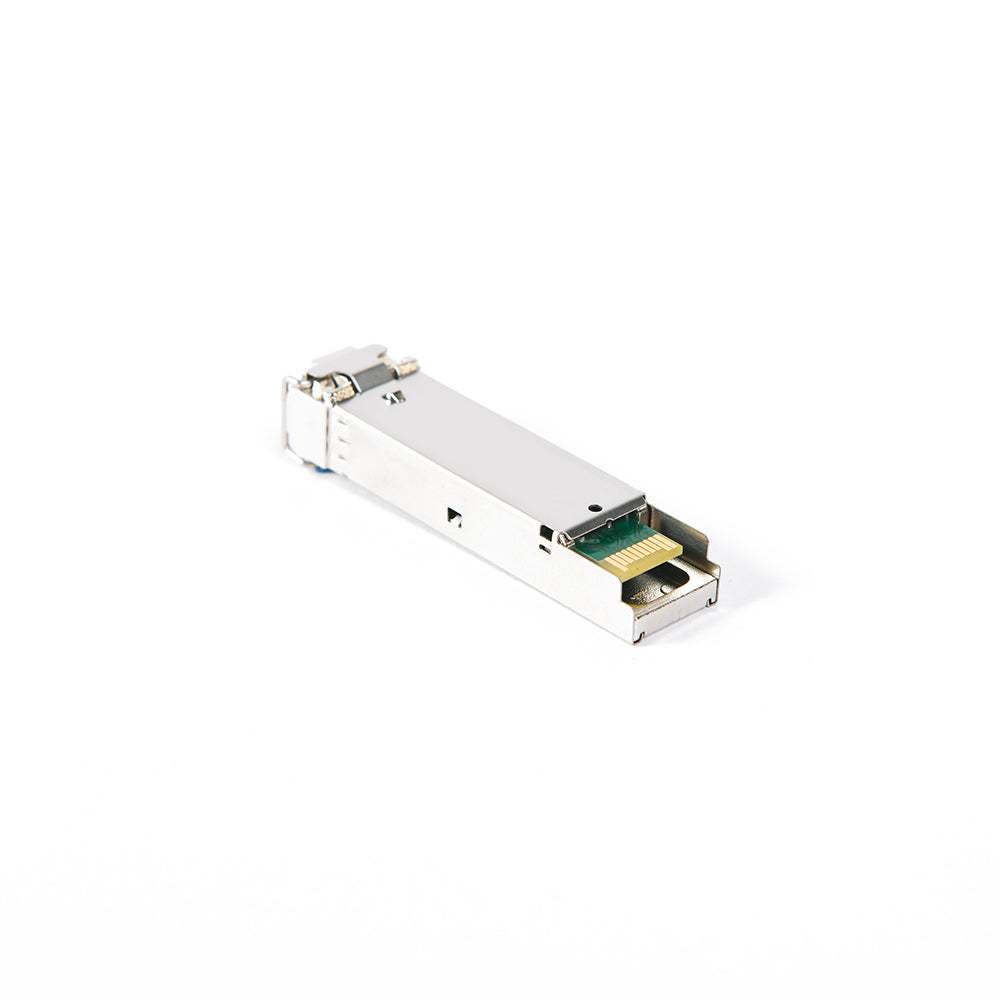

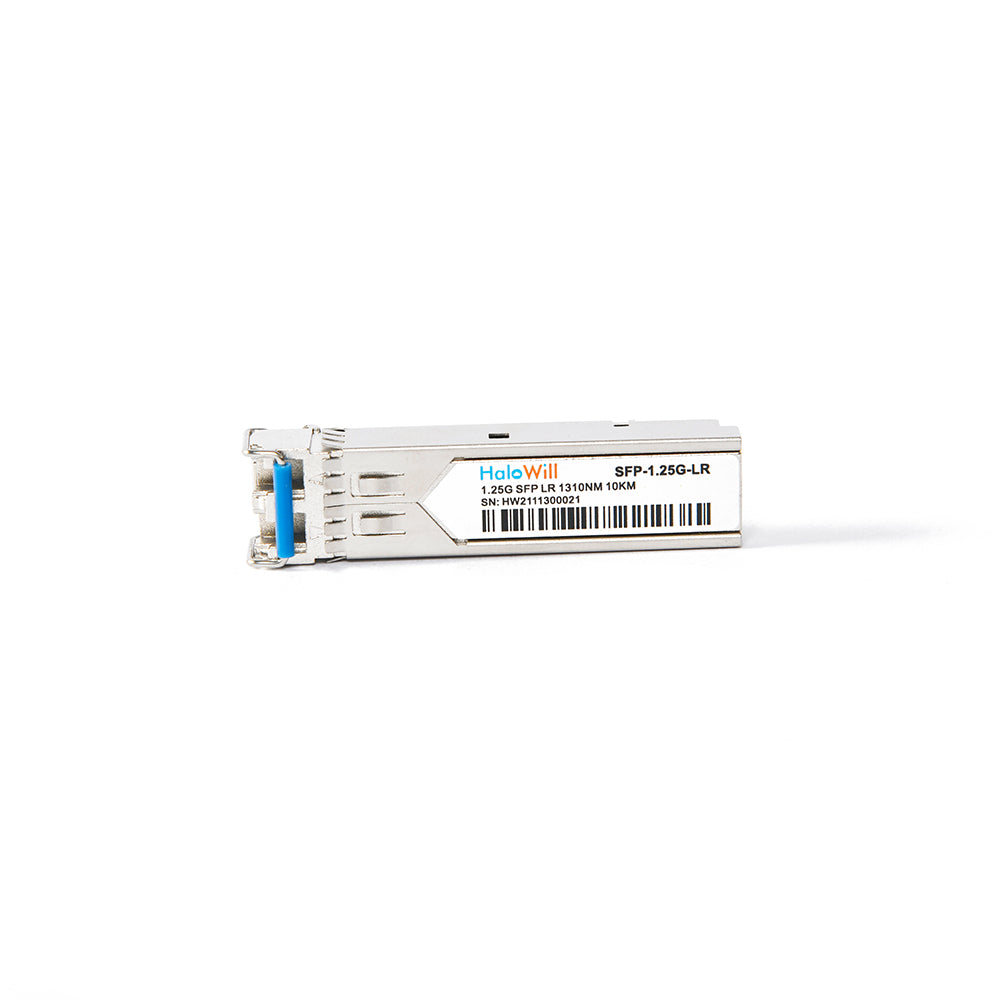

SFP-1.25G-LR
- ≤ 1W Low Power Consumption
- LC Duplex Type, FP+PIN
- For Gigabit Ethernet and Data Center
- Hot Pluggable SFP MSA Compliant
- Maximum Link Length of 20km on SMF
The SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
CERTIFICATES
Our products have passed authoritative certification and complied with international quality standard
Description |
|
| Part Number | SFP-1.25G-LR |
| Vendor Name | HaloWill |
| Form Factor | SFP |
| Wavelength | 1310nm |

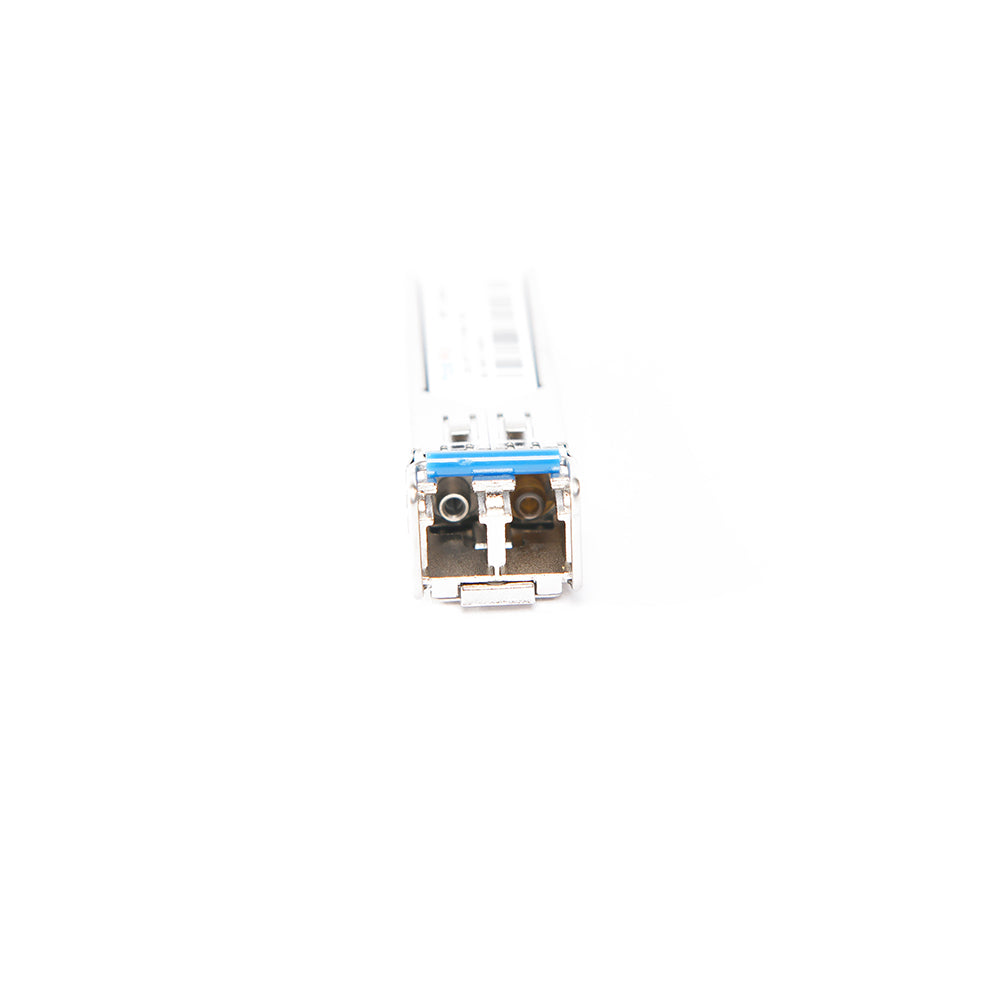

| Connector | LC Duplex |
| Transimitter Type | FP |
| Data Rate | 1.25Gbps |
| Reach | 10km |
| Cable Type | SMF |
| DDM/DOM | Supported |
| TX Power | -9~-3dBm |
| Receiver Sensitivity | <-24dBm |
| Power Consumption | <1W |
| Receiver Overload | -3dBm |
| Receiver Type | PIN |
| Operating Temperature | 0 to 70°C |
| Extinction Ratio | >8dB |
| Host FEC | Supported |
| BER | 1E-12 |
| Warranty | 3 years |
| Protocols | IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
APPLICATION
1.25G PRODUCTS FOR:
Gigabit Ethernet and Data Center
QUALITY CONTROL
Professional QC team and dvanced testing equipments contribute a lot to the reliable quality of products. Every optical transceiver has been tested strictly before delivery to avoid after-sales issues.
