Halowill

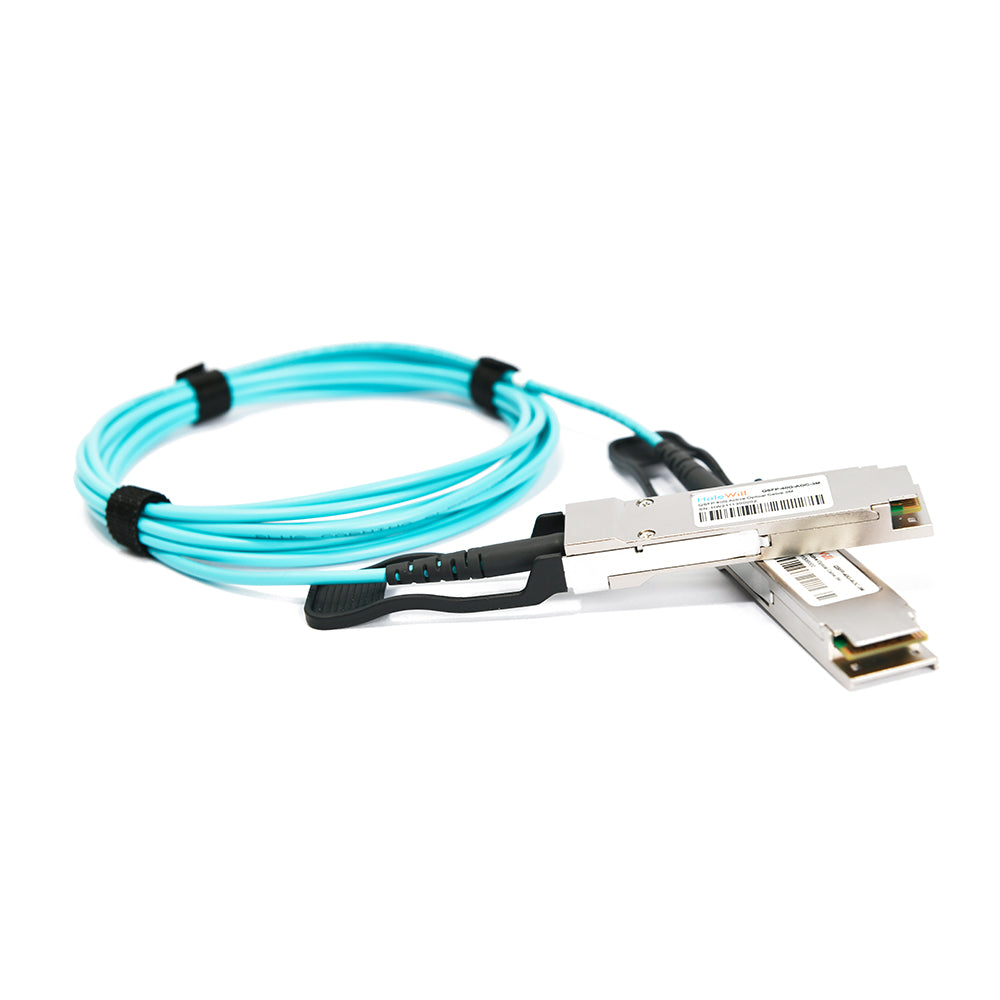

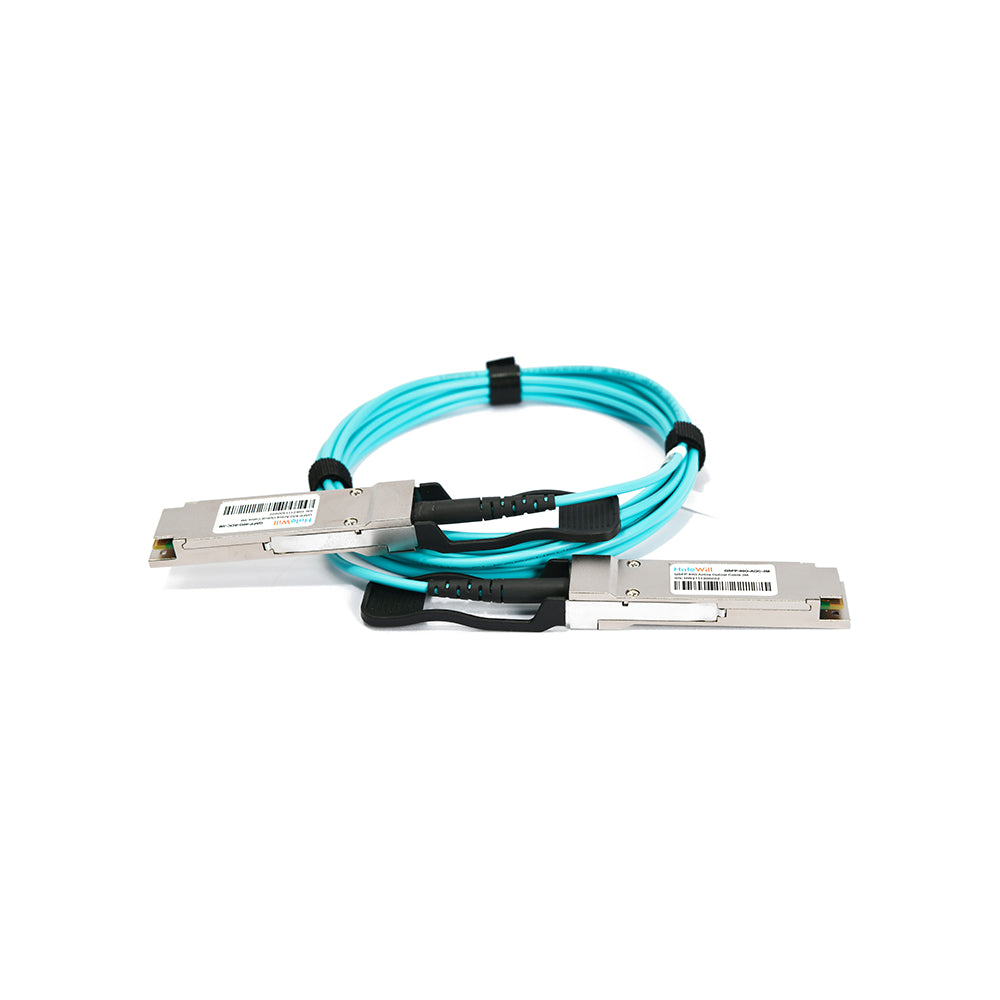

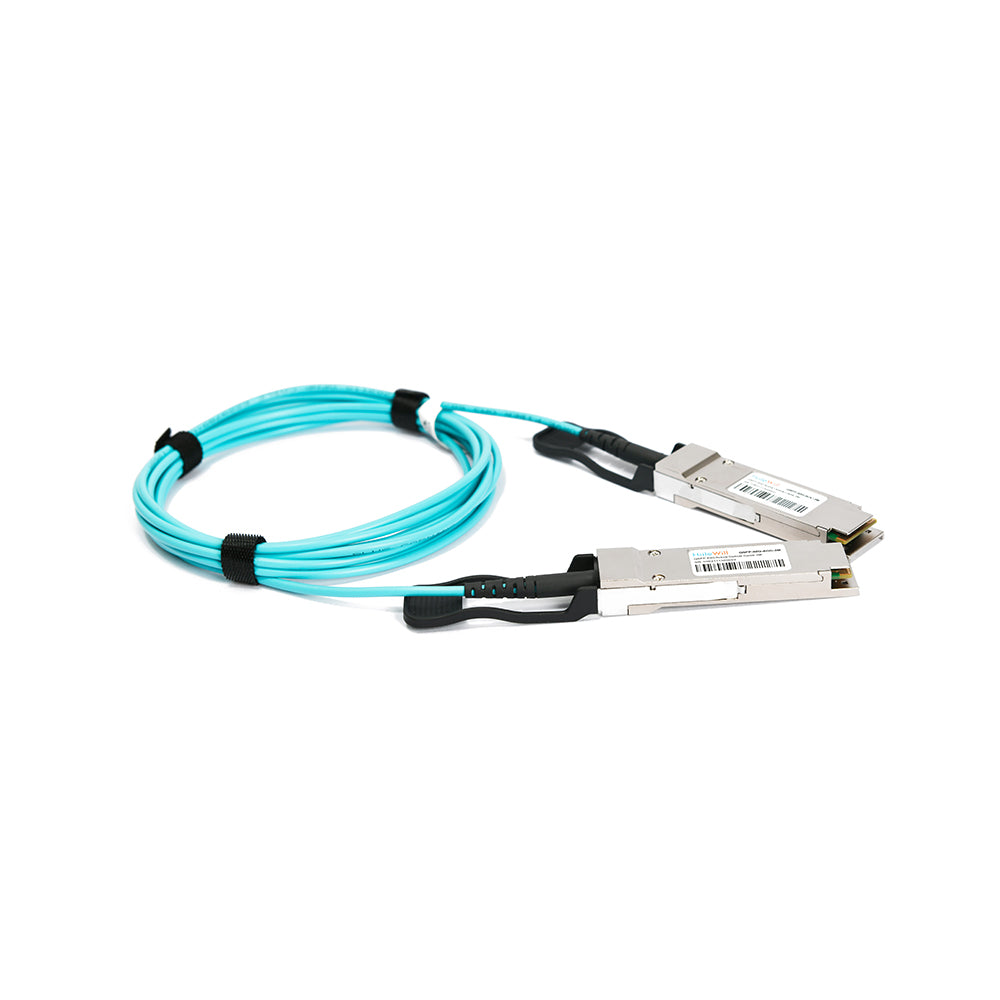

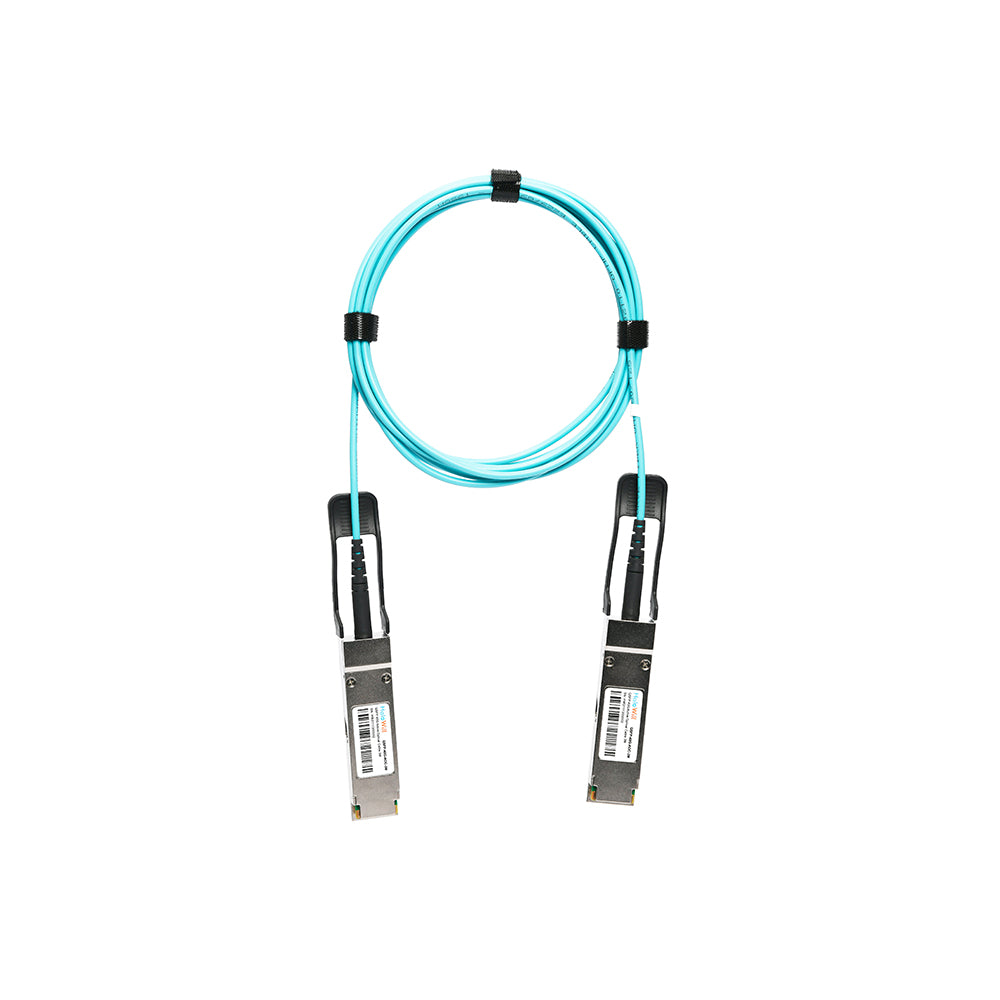

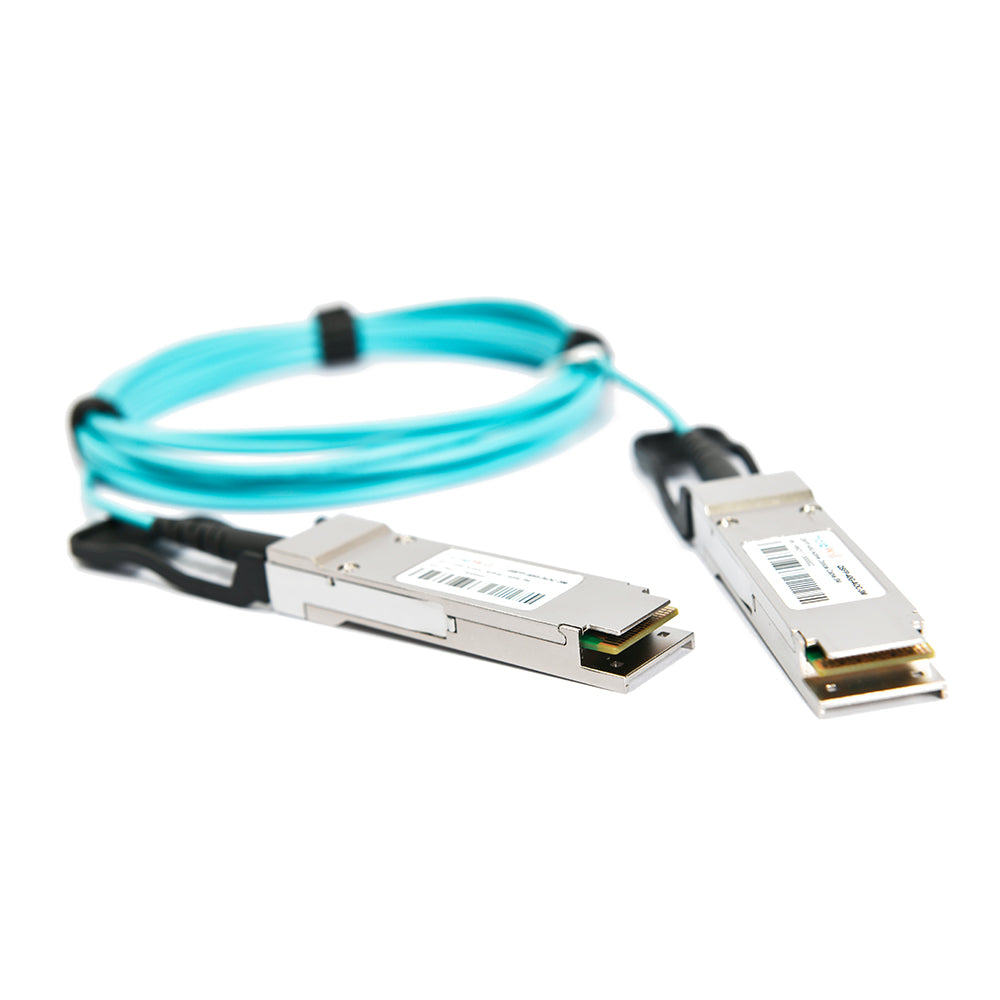

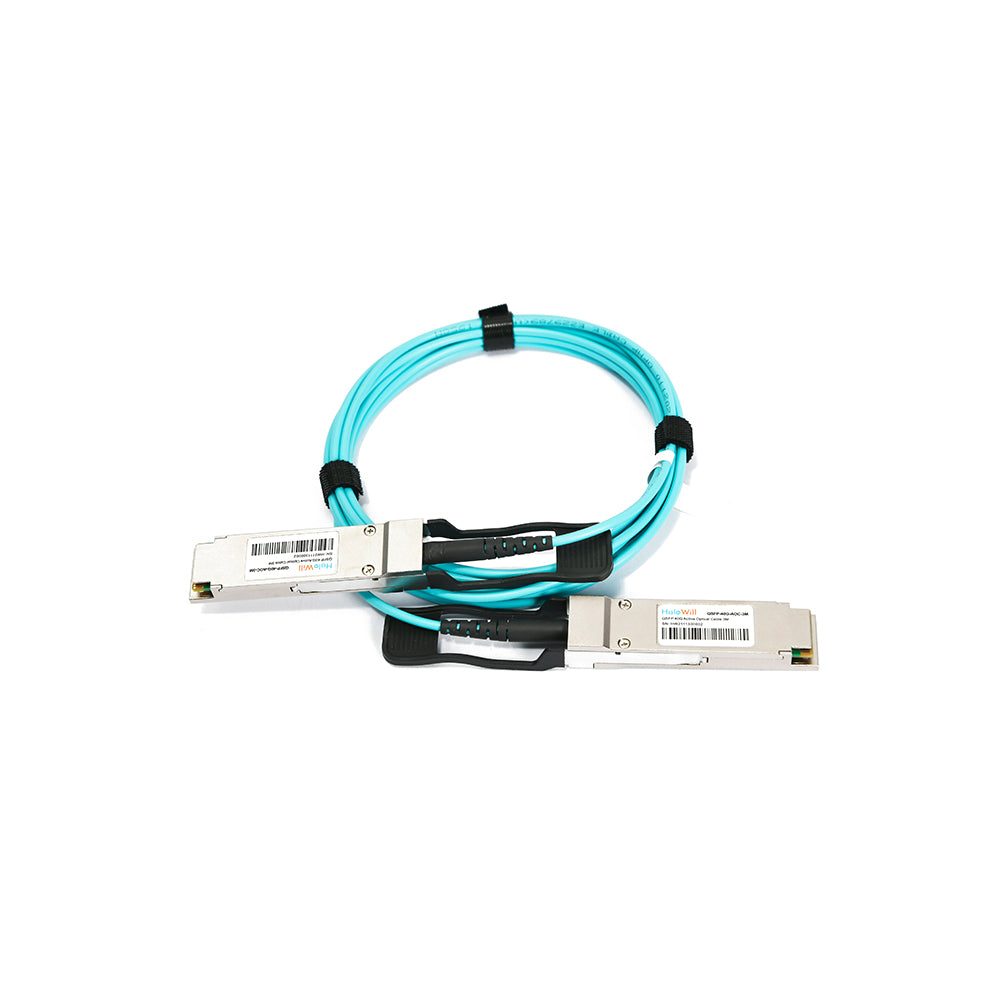

QSFP-40G-AOC
- Low power dissipation <1.5W
- Supports 41.25Gb/s bit rate
- Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
- Hot Pluggable QSFP+ form factor
The Halowill's QSFP+ active optic cables are a high performance, low power consumption, long reach interconnect solution supporting InfiniBand DR/DDR/SDR, 12.5G/10G/8G/4G/2G fiber channel,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. The Halowill's QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10.3125Gb/s, providing an aggregated rate of 41.25Gb/s. The Halowill's QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
CERTIFICATES
Our products have passed authoritative certification and complied with international quality standard
Description |
|
Part Number | QSFP-40G-AOC |
Vendor Name | Halowill |
Connector Type | QSFP+ to QSFP+ |
Minimum Bend Radius | 7.5mm |
Jacket Material | OFNP |
Data Rate | Reach 40Gbps |
Cable Length | 1-100m |
Operating Temperature | 0 to 70°C |
Protocols | 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel |
APPLICATION
![](https://cdn.shopify.com/s/files/1/0599/4921/9999/files/124129.jpg?v=1640061956)
AOC PRODUCTS FOR:
Short Distance Interconnects
QUALITY CONTROL
Professional QC team and dvanced testing equipments contribute a lot to the reliable quality of products. Every optical transceiver has been tested strictly before delivery to avoid after-sales issues.
Service
Downloads | Datasheet |
Package | Anti static plastic box+Paper box |
